Oil Dispenser for Work Shop

Spillage

Oil handling in workshop


Oil is taken out of the barrel. when this is done, Oil is spilled. This costs you money






Measurement is made. When this is done, Oil is spilled. This costs you money






Oil is poured into the vechicle. When this is done, Oil is spilled. This costs you money





Measurement Errors. This costs you money







* As per study done by TERI (The Energy and Resources Institute). For example if you consume 10 barrels/month your spillage is 63 Ltrs/month.

Contamination

As per a study by EPA (Environment Protection Agency) 1 Ltr of Oil contaminates 50,000 Ltrs of ground water

How it happens

Spilled oil is cleaned with cotton waste and this is disposed in the dust bin. This trash is

sent to the dump yard(oil is not degradable), and when it rains, the water mixes with oil and seeps into the ground, when you wash the floor the oil gets into the sewer Similarly for packed oil (This is more damaging, the extra oil is given to the customer and most of the time the customer dumps it in the dust bin) (Just imagine the damage by using packed oil)

Important things to make sure not to do with motor oil:

Do not bury it
Do not throw it in the trash
Do not pour it down the drai
Do not throw it on the ground
Do not dump it down the sewer



For every transaction the technician is required to go to the store get oil.(Or oil cans) It takes a minimum of 15 to 20 min. This costs you money







Some times he is waiting for the Delivery or gossiping






For example in your workshop ,oil change is done in 45 vehicles /day

Then 45 x 20 minutes = 900 minutes is lost

This is equivalent to 2 Man days. i.e 2 persons salary/month

Salary of each technician is Rs.5000=00,Then loss is Rs.10000/month

If each technician services 3 cars/day , Average income per car is Rs.500

Then 2 technicians service 6 cars/day, Income per day lost is Rs.3000

Income Lost per month ( 25 working days) =25 x 3000 = Rs.75000/month

Here is the solution

Convert All your losses Into Profits by installing Protech Computerised integreted Moduler Network based Oil Dispensing and Management System

  • The oil directly from the barrel is dispensed into the vehicle
  • All the technician has to do is Key in the Job Card.
  • Present his RFID card, Pickup the nozzle and dispense into the Vehicle.
  • All in less than a minute.

Computerised oil dispenser is microprocessor based modular , Networked based metered oil Dispensing system using cutting edge technology

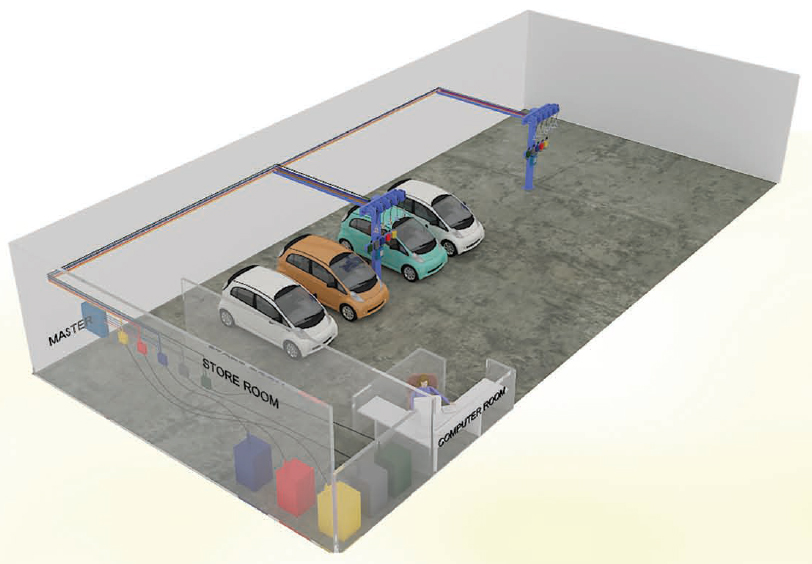

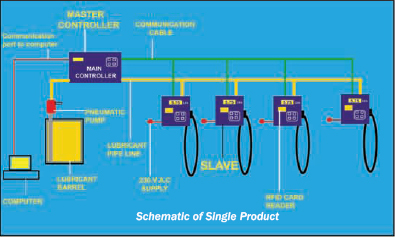

It uses one metering Unit (for each product) for multi point dispensing with master-slave concept. The master contains the metering unit and is networked with slaves at the point of dispensing(at the bays of the workshop), Each master can handle up to 50 slaves (i.e. 50 dispensing points) and up to 5 products. The required quantity can be programmed at the slave or sent from the fluid management software. The message is sent to the master which in turn takes charge of that particular slave and dispenses the programmed quantity through that slave only. The master is connected with a pneumatic pump which can be directly mounted on the barrel.

Procedure of operation

  • The store keeper sends the qty of oil, type of oil,job card no & the person authorized to dispense the oil from fluid management software loaded in the PC at the store.
  • The slave asks for the Job card NO, which is entered using the front panel keys.
  • The slave asks for the ID card, where in the technician has to present it at the reader on the slave.
  • The slave will cross check for the validation of the ID. If it's a valid ID it will start dispensing or else an ID INVALID message is displayed
  • Once the dispensing is over the slave sends the following data to the master
    • Quantity Dispense
    • Date
    • Time
    • Job Card No
    • Product
    • Technician Name

Master:

The Master is a microprocessor based system. It consists of an RS- 485 Communication Port, Oval Gear meters for metering each product with great accuracy, built in calibration, Totalizer (for better accountability), a backlit LCD display, memory to store 1000 transactions & a keypad(keys are life time warranty). It has an inbuilt barrel empty indicator, port for communication with PC (Where in the Data can be downloaded).



Master:

The slave is a microprocessor based system. It consists of an RS-485 communication Port, Backlit LCD display, oil low level indicator, keypad(keys are life time warranty), job card entry, RFID Reader 4 keys, a status indication lamp to indicate the availability of the master and a Non drip nozzle.

Fluid Management Software:

The lube management software helps in keeping drop to drop accountability and comprehensive records of all transactions. It enables the workshop manager to have control over bulk oil usage to prevent oil loss.

Features:

  • Online Data of every Transaction
  • Complete Inventory Management of Lubes
  • Online Job Card wise Query
  • Graphical Display of inventory
  • On line Graphical Display of Barrel Level.
  • Job Card Authorization Entry(For controlled usage)
  • Job card wise Report
  • Technician wise Report
  • Purchase entries Reports.
  • Product wise report.
  • Barrel wise report.

Advantages:

  • Avoid Spillage.
  • Drop to drop accountability of Lube.
  • Better Housekeeping (no spillage).
  • Saving in Bulk Purchase of lube oil.
  • Avoid excess dispensing (accurate metering).
  • Helps in workshop Automation
  • Secured Access
  • Man hours savings turn around
  • No Litter disposal (Packaged Oil).
  • Multi user facility.
